The Axivance EG101 Industrial Edge Gateway is a compact, industrial-grade Linux edge computer designed to serve as the foundation for custom IoT, automation, and remote monitoring solutions. Engineered for reliability in demanding environments, the EG101 provides a powerful, low-power computing platform that can be configured as an industrial gateway, protocol converter, edge controller, or data acquisition device.
Sold unprovisioned, the EG101 gives system integrators, OEMs, developers, and industrial users complete flexibility to install their preferred software, communication protocols, and applications. Whether you're building a custom SCADA interface, remote telemetry system, industrial IoT deployment, or edge computing solution, the EG101 provides a rugged platform ready to support your application.
Its fanless design, compact footprint, and industrial certifications make it well suited for oil & gas, utilities, manufacturing, water and wastewater, agriculture, renewable energy, transportation, and other industrial environments.

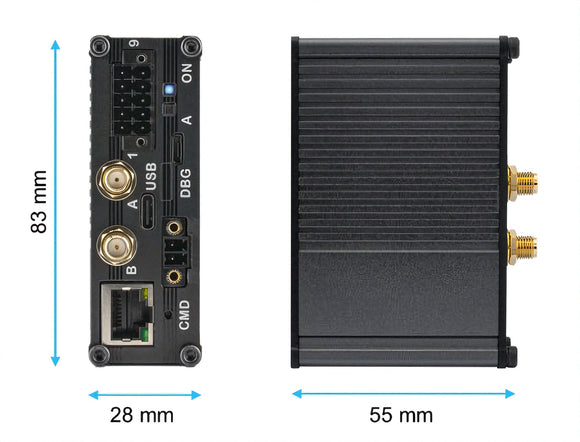

Dimensions (HxWxD): 83 x 28 x 55 mm
Weight: 170 gram
Features
Industrial Linux Edge Computer
Linux-based industrial computer designed for edge computing, data acquisition, protocol conversion, and custom gateway applications.
Unprovisioned Platform
Delivered without gateway software or cloud provisioning, allowing complete flexibility to install and configure your preferred operating system, applications, and communication protocols.
Built for Industrial Applications
Designed for continuous operation in demanding industrial environments where reliability and long-term performance are critical.
Compact Form Factor
Measures just 83 × 28 × 55 mm (3.27 × 1.10 × 2.17 in), making it easy to install inside electrical panels, equipment enclosures, OEM systems, and space-constrained applications.
Fanless, Low-Power Design
Passive cooling with no moving parts provides quiet operation, improved reliability, and reduced maintenance requirements.
Flexible Edge Computing
Supports custom gateway development, protocol conversion, SCADA integration, remote monitoring, data logging, industrial networking, and edge analytics.
Industrial Environmental Ratings
Available in commercial and industrial temperature configurations to support a wide range of deployment environments.
Technical Specifications
| Specification | Details |
|---|---|
| Memory | 2 GB RAM |
| Cellular Connectivity | Integrated 4G/LTE Cat-1 bis modem |
| Network Compatibility | Worldwide LTE, UMTS/HSPA |
| Ethernet | 1 × Gigabit Ethernet (RJ45) |
| USB | 1 × USB 2.0 Host (USB Type-C) |
| Real-Time Clock | Integrated RTC with onboard coin-cell battery backup |
| Status Indicators | 1 × Programmable dual-color LED, 1 × Power LED |
| Power Input | 12–24 VDC (±20%) |
| Power Protection | Reverse polarity protection |
| Cooling | Passive, fanless design |
| Housing Material | Aluminum |
| Dimensions | 83 × 28 × 55 mm (3.27 × 1.10 × 2.17 in) |
| Weight | 170 g (6.0 oz) |
| Regulatory Certifications | FCC, CE, UKCA |
| EMC Compliance | EN 55032/5, EN 61000-6-2, EN 61000-6-3 |
| Safety Certification | EN/UL/IEC 62368-1 |
| Operating Temperature (Commercial) | 0°C to 60°C (32°F to 140°F) |
| Operating Temperature (Industrial) | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
Ideal Applications
- Industrial IoT (IIoT)
- Edge Computing
- SCADA Integration
- Remote Monitoring
- Data Logging
- Protocol Conversion
- Industrial Automation
- Oil & Gas
- Utilities
- Water & Wastewater
- Manufacturing
- Renewable Energy
- OEM Equipment Integration
Note: The Axivance EG101 is sold as an unprovisioned Linux edge computer. Gateway functionality depends on the software installed and configured by the user or through Axivance provisioning services. For customers seeking a ready-to-deploy solution, Axivance also offers pre-configured gateway options tailored to specific industrial applications.
